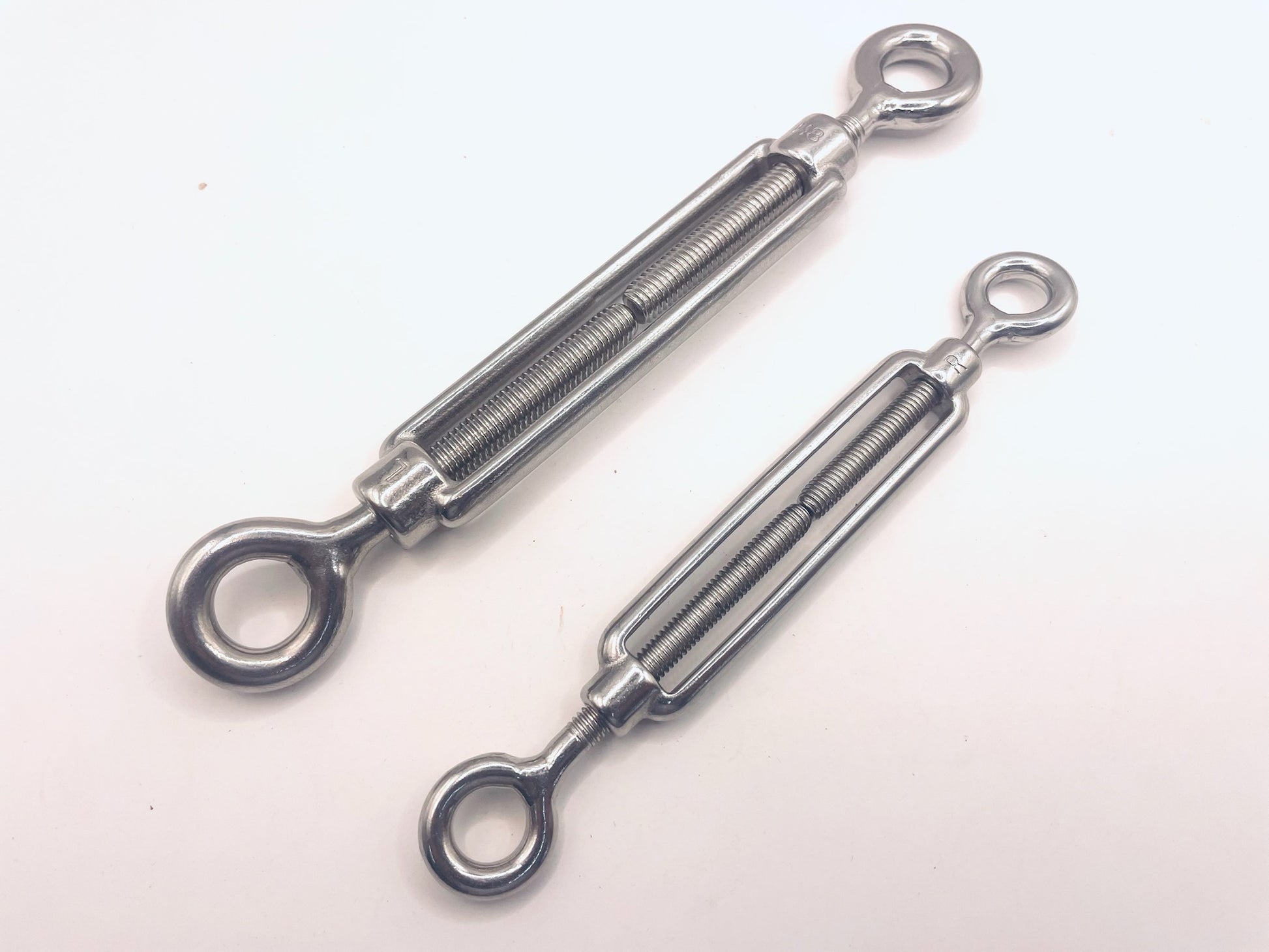

Open Turnbuckle Eye/Eye DIN 1480

Open Turnbuckle Eye/Eye DIN 1480

Size
Stainless Steel Grade
Regular price Unit price KSh700.00
Regular price Sale price KSh700.00
Sale Coming Soon



Material: Stainless Steel
Class / Grade: A4 (316) , Electro Galvanized

Size: 6,8,10mm - Dimensions indicate material cross-section and base length



These are also known as tensioners, turnbuckles, straining screws, adjusters, or barrel strainers.

One end is right-handed and the opposite end is left-handed. You create tension by simply rotating the turnbuckle centre body.

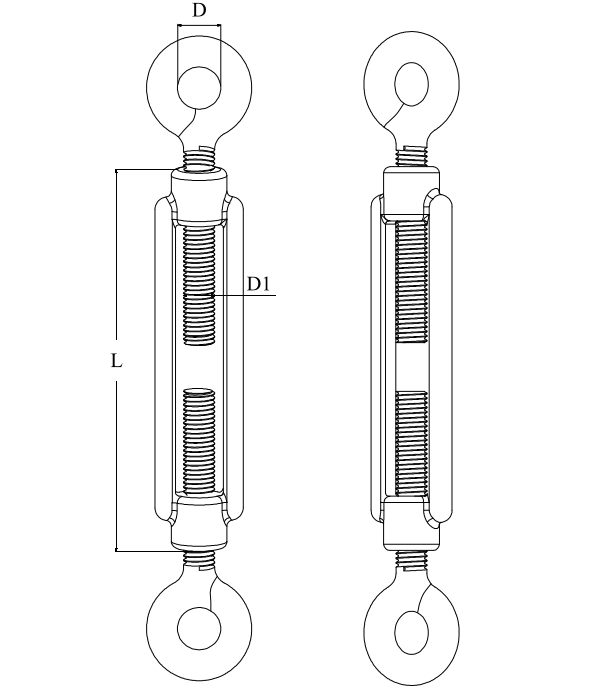

D1 L D Min.BL Grade
(mm) (mm) (mm) (KN)
M6 110 10 7.7 SS316
M8 110 12 13.9 SS316
M10 125 14 21.8 SS316
