Swivel Eye Pulley - Double Sheave
Swivel Eye Pulley - Double Sheave
Couldn't load pickup availability
Material: Stainless Steel
Class / Grade: A4 (316)
Size (): 25 (mm)

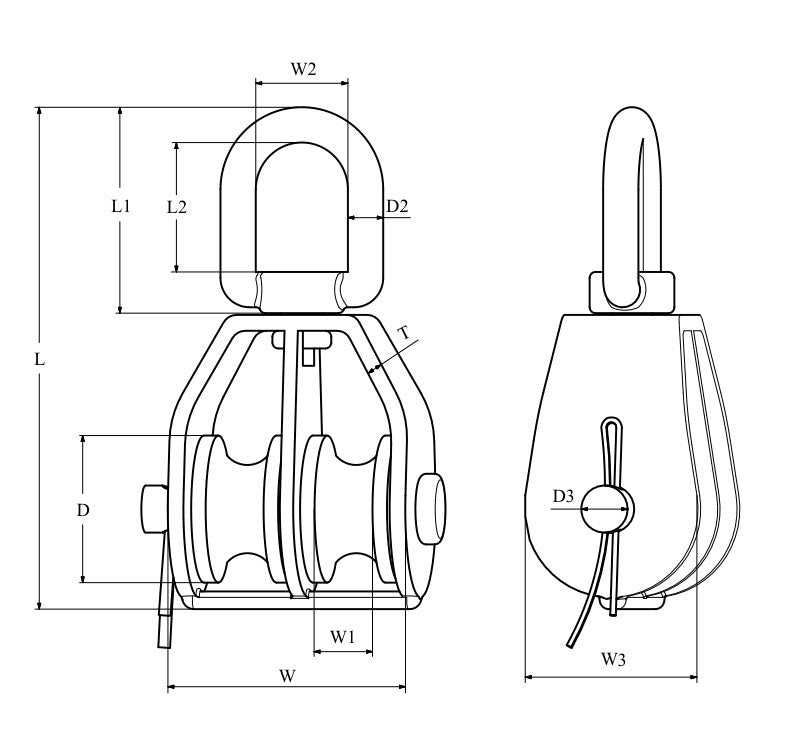

| D (mm) | Wire(mm) | L (mm) | L1 (mm) | L2 (mm) | D2 (mm) | D3 (mm) | T (mm) | W (mm) | W1 (mm) | W2 (mm) | W3 (mm) |
| 25 | 6 | 83 | 34 | 19 | 6 | 8 | 3 | 41 | 10 | 15 | 30 |

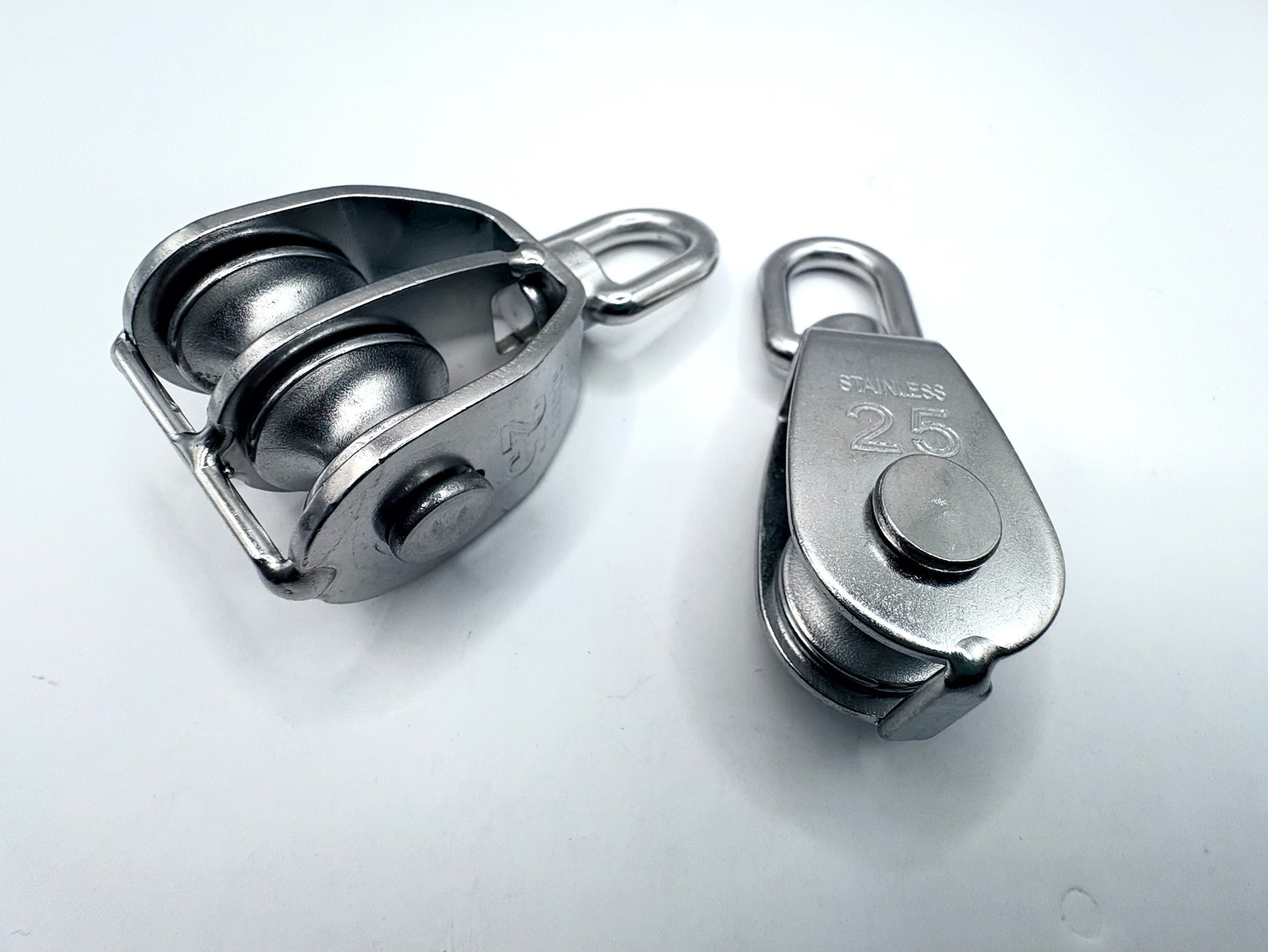

316 Stainless Steel Swivel Eye Pulleys
Our 316 stainless steel swivel eye pulleys are designed for use with rope systems in marine, architectural, agricultural and general outdoor applications. Manufactured from high-quality marine-grade 316 stainless steel, they offer excellent corrosion resistance in coastal environments. The swivel eye allows the pulley to rotate freely and helps the rope align naturally, while the enclosed stainless steel frame helps retain the rope within the pulley body during use. Available in single and double sheave versions, these 25 mm pulleys are suitable for rope up to 6 mm diameter and have a breaking load of 13.9 kN, approximately 1,400 kg. They are useful for flag halyards, shade systems, boat fittings, light rigging and general rope-guiding applications.
Important note: Breaking load is not the same as working load limit. Please apply an appropriate safety factor for the intended use. These pulleys are not supplied as certified lifting, fall-arrest, rescue or PPE equipment unless specifically stated in writing.
