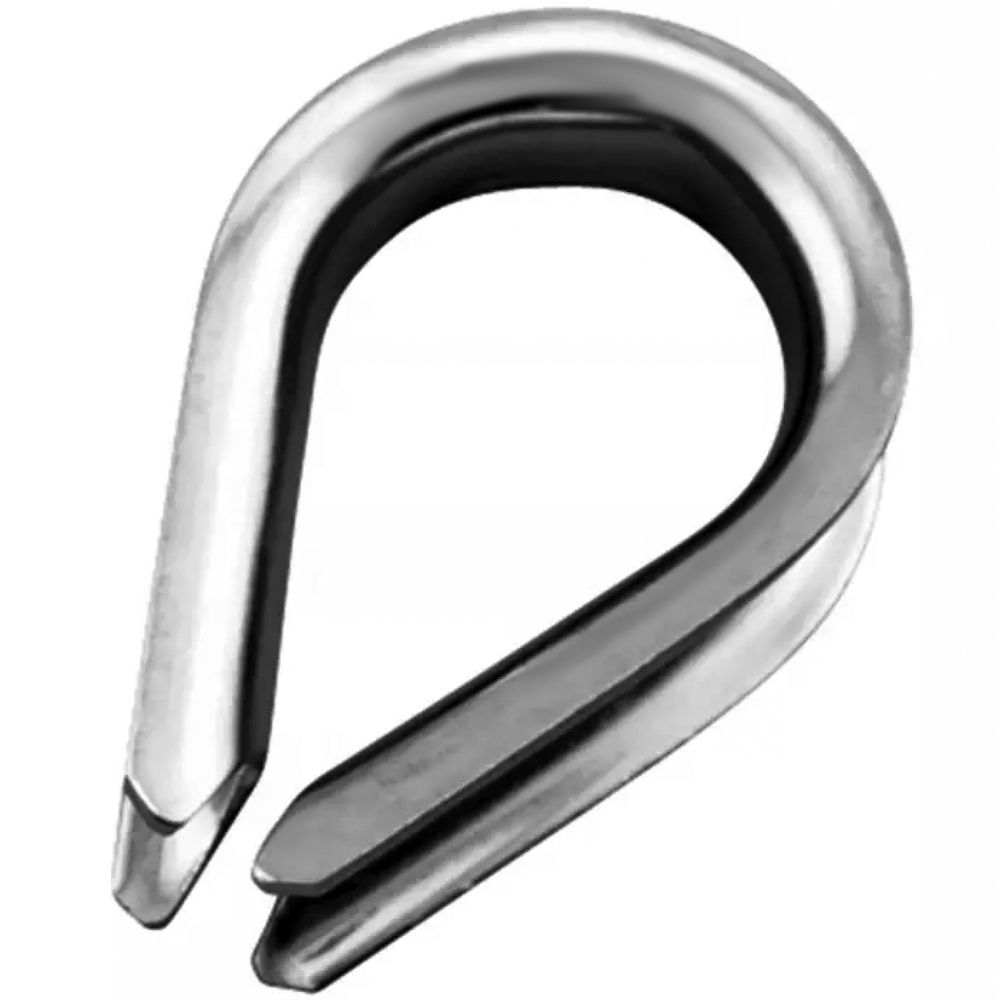

Wire Rope Thimble Eye
Wire Rope Thimble Eye
Regular price
Unit price KSh52.20
Regular price
Sale price
KSh52.20
Unit price
per
Couldn't load pickup availability
Material: Stainless Steel
Class / Grade: A4 (316), Electro Galvanized, White Nylon
Size: 2mm, 3mm,4mm,6mm,8mm,10mm - Suitable for 2,3,4,6mm,8mm & 10mm wire rope

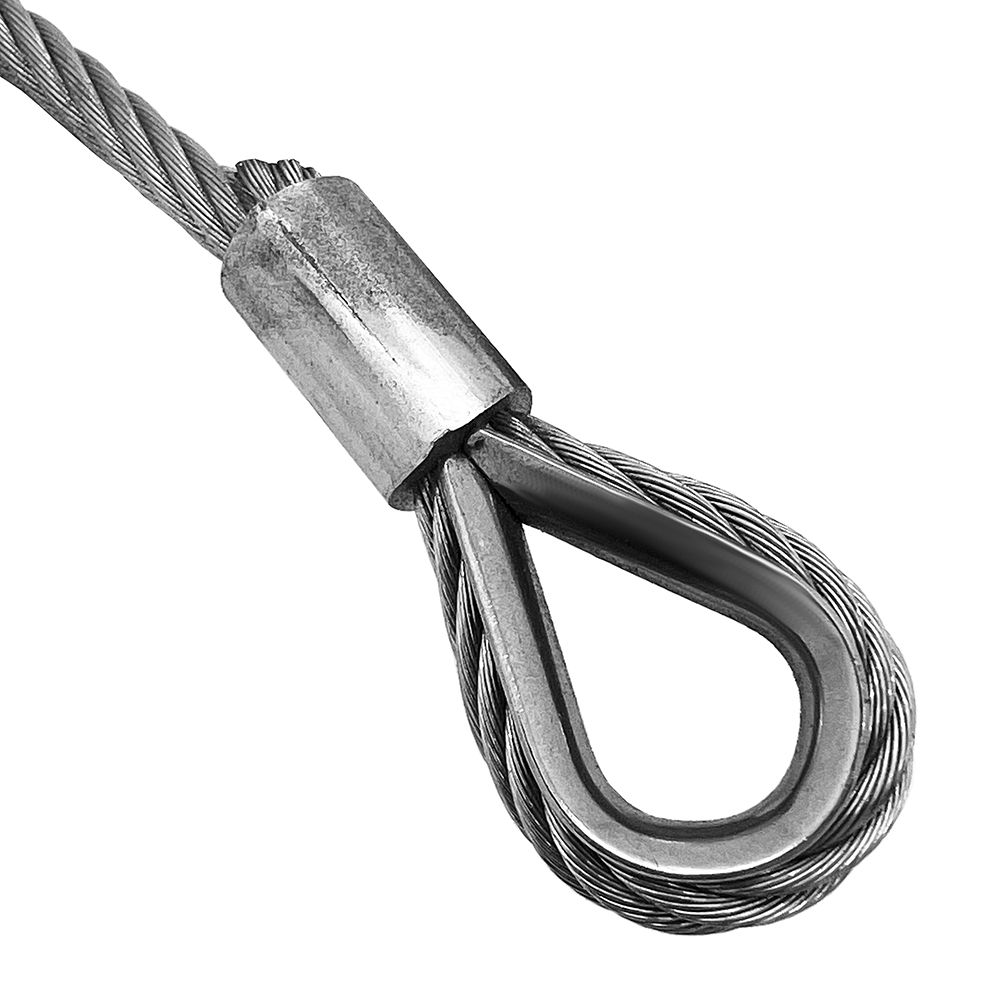

- Used to produce reinforced eyes in wire rope
- Used to protect the wire rope from pinching

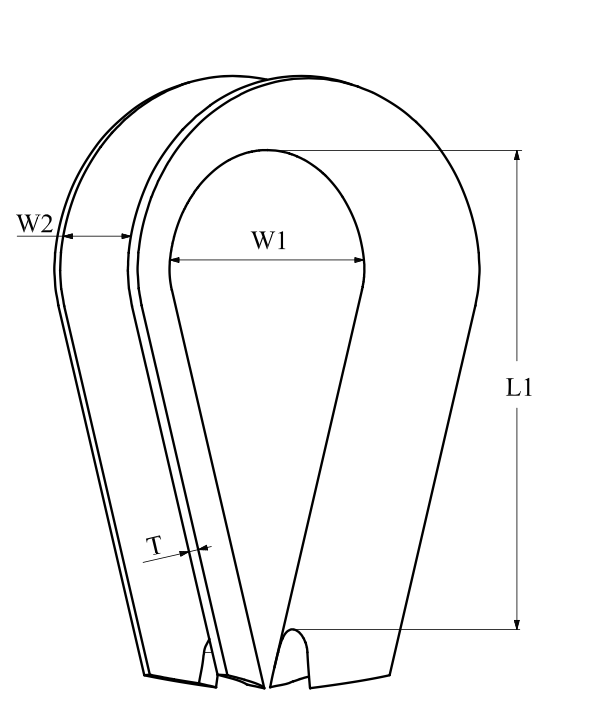

| Dimension | W2 | W1 | L1 | |
| (mm) | (mm) | (mm) | (mm) | Grade |
| 2 | 2 | 7.5 | 13 | SS316 |
| 3 | 3 | 11 | 25 | Electro Galvanized |
| 4 | 4 | 11 | 18 | SS316 |
| 6 | 6 | 15 | 27 | SS316 |
| 4 | 4 | 12 | 27 | Electro Galvanized |
| 6 | 6 | 14 | 30 | Electro Galvanized |
| 8 | 9 | 18 | 35 | SS316 |
| 10 | 11 | 25 | 42 | SS316 |
